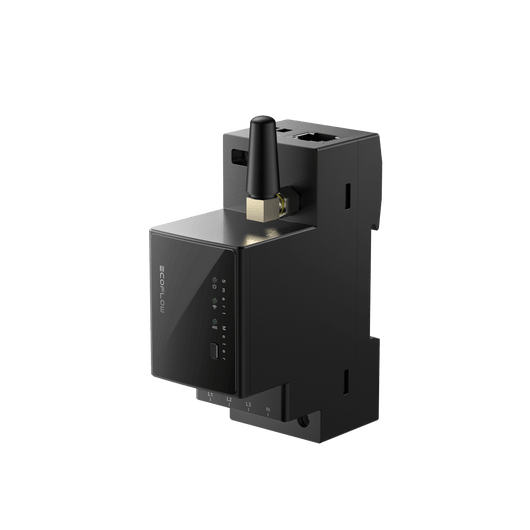

Smart Meter — Monitor Your Power Smartly
Why you need it?
Real-time, whole-home energy monitoring | Automatic detection of surplus energy | Enables zero-feed-in solar power usage | Optimised with EcoFlow's OASIS algorithm
Implement Whole-Home Intelligent Power Monitoring for the STREAM System
Home appliances such as lights and built-in kitchen appliances cannot be monitored by plug-and-play smart plugs. In this case, a smart meter is needed to monitor the electricity of the entire house, thereby enabling the system to automatically schedule.

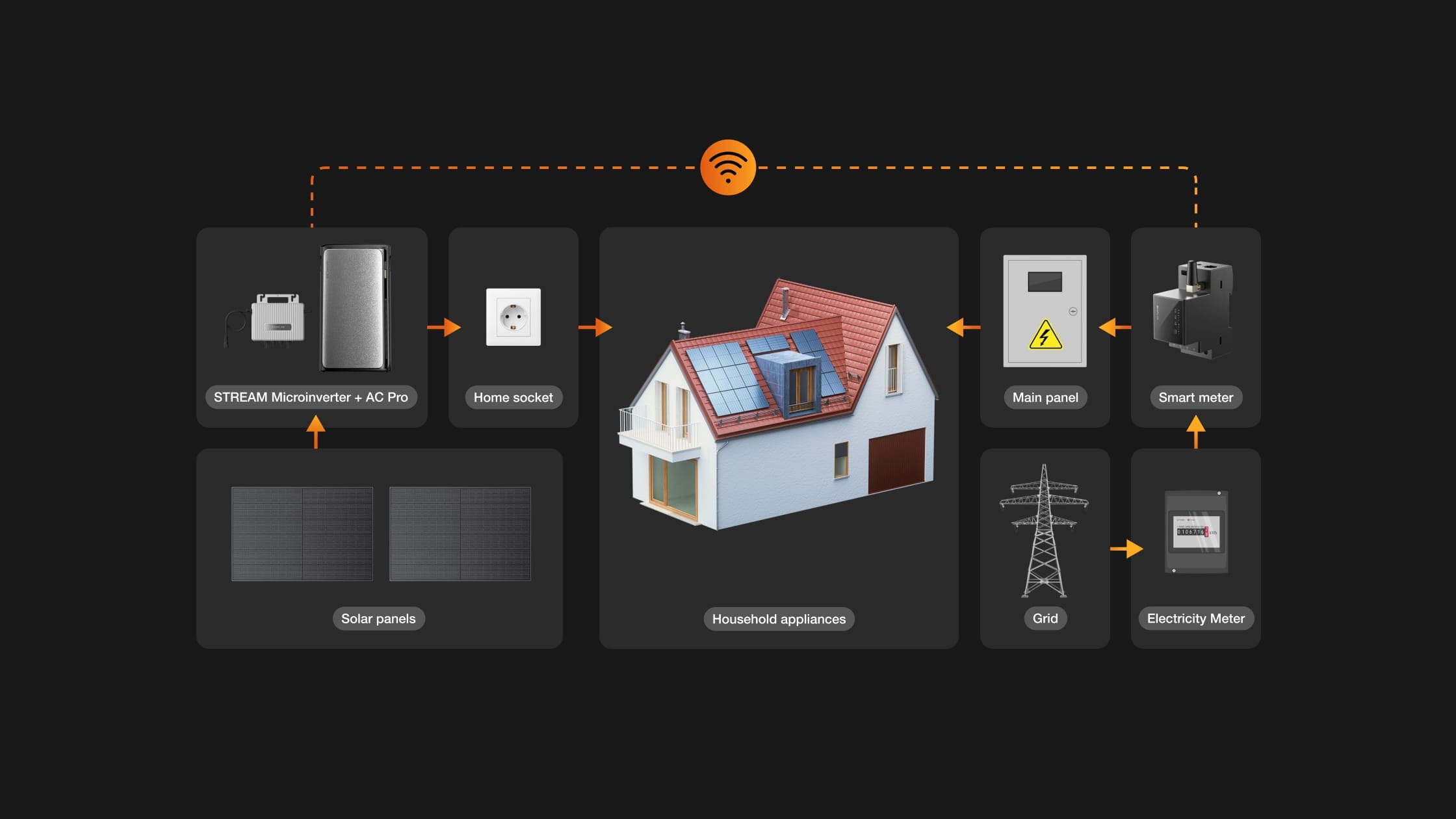

Pair with STREAM AC Pro for Photovoltaic System Energy Storage
Due to its AC coupling design, STREAM AC Pro can be easily retrofitted to existing solar systems, allowing for plug-and-play energy storage integration. By simply adding a smart meter, the system can determine when to charge and when to utilize AC Pro for household electricity offset, maximizing solar energy utilization.

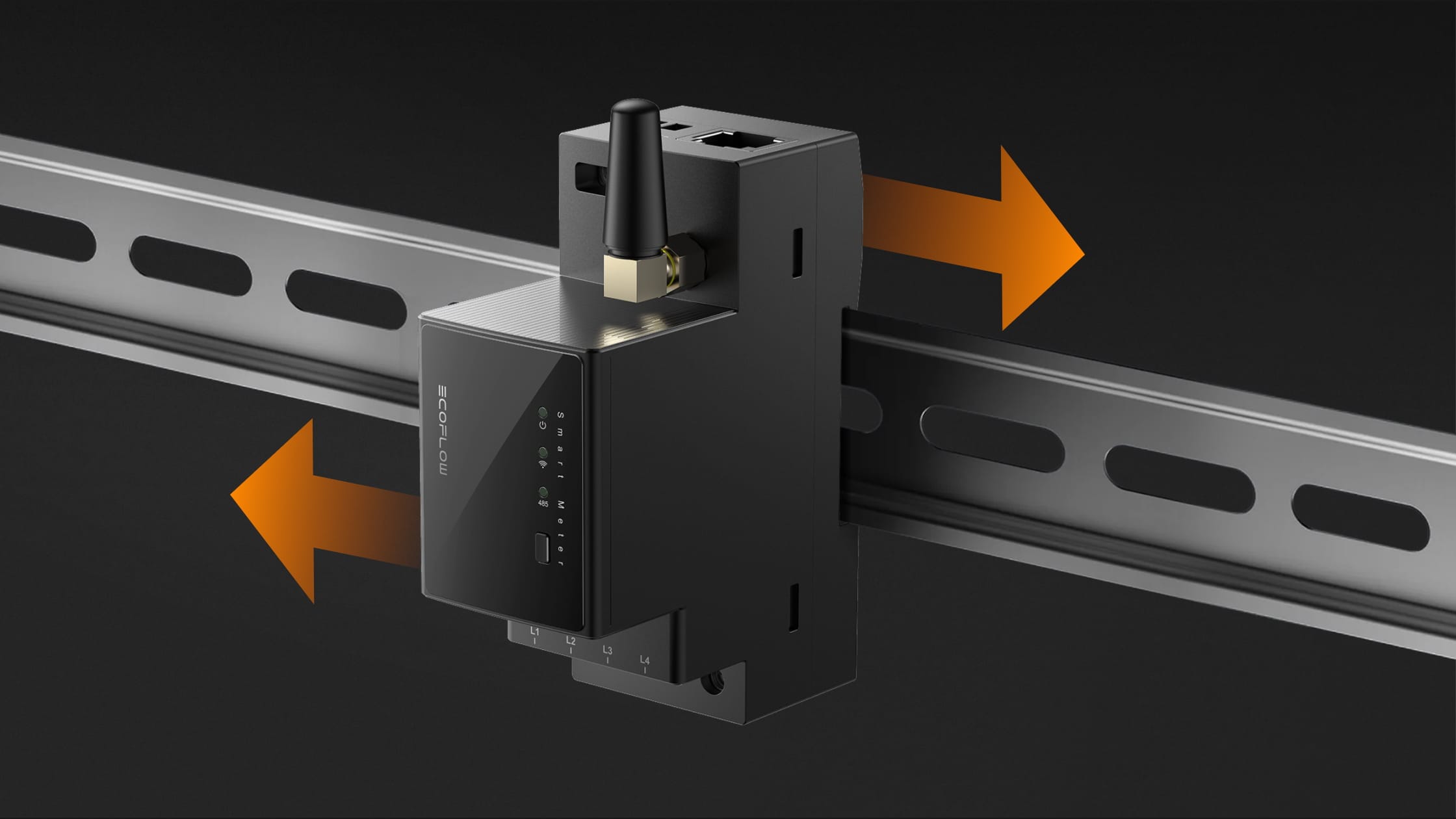

Easy to Install
It only requires simple installation and connection, without incurring high installation costs or the need for circuit modifications.
Unlock the Full Power of OASIS with Smart Synergy
Your EcoFlow OASIS experience reaches its true potential when paired with our AI-Optimized Smart Meter – the missing link that transforms data into actionable intelligence. Like a symphony conductor connecting instruments to harmony, our hardware becomes the foundation for your software's brilliance. Real-time energy insights, precision load balancing, and adaptive AI predictions activate only when Smart Meter meets OASIS platform, creating a closed-loop ecosystem where every watt tells its story.
The Smart Meter isn't an accessory – it's the kinetic key to OASIS's latent power. Purchase yours today and watch your energy ecosystem awaken.
Smart Meter × Smart Plug: Zero Feed-in. All Solar, All Yours¹
Basic Features
Installation Method
DIN rail installation
Meter Phases
Three-phase / Single-phase
Communication Methods
Wi-Fi / Bluetooth (users can enable or disable each connection option);
RS-485 communication (for production testing and monitoring)
Current Transformer Connection
External split-core CTs, 3 current transformer inputs
Voltage Signal Connection
4 line inputs: 3 L and 1 N or 1 L and 1 N
Calibration
Only supports on-site calibration
Accuracy
Rated Voltage
±0.5%
Current
±0.5%
Active Power
±1%
Reactive Power
±1%
Apparent Power
±1%
Power Factor
±1%
Frequency
±0.02Hz
Fundamental Phase (Voltage/Current)
±1°
Harmonics
Class S (GB/T 19862-2016, IEC 61000-4-30, IEC 61000-4-7)
Active Energy
Class B GBT 17215.321-2021 EN 50470-3-2022
Fundamental Reactive Energy
Class 1 (GB/T 17215.324-2022, IEC 62053-24:2020)
CT Specifications
Rated Voltage (Un)
~230V L-N / 400V L-L
Measurement Range (L-N)
100V ~ 1.2Un (i.e., 100V – 276V)
Starting Voltage (L-N)
100V
Frequency
45Hz-65Hz
Power Consumption
<0.02VA per phase
Physical Specifications
Size (H × W × D)
90 × 66 × 36 mm
Weight
115 g
Protection Level
IP30
Conductor Cross-section
0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace lugs)
Conductor Strip Length
6 to 7 mm
Shell material
Plastic
Colour
Based on ID design
Environmental Conditions
Operating Temperature
-25°C to 70°C
Storage Temperature
-40°C to 85°C
Humidity
5% to 95% RH
Maximum Altitude
3000 metres
Electrical Parameters
Power Supply Voltage (AC)
100–276V, 50/60Hz
Max Power Consumption
<3W
Current Measurement Range
0–120A (via CT per phase and neutral)
CT Compatibility
CT 120A
CT Cable Length
50 cm
Antenna Extension Cable
1.5 m
Power & Energy Measurements
Active / Apparent Power & Energy
Power Factor
Fundamental Active/Reactive Energy
Radio Frequency & Connectivity
RF Frequency Band
2400–2495 MHz
Max RF Power
2.4G 11b 11Mbps, TRP ≥14 dBm, TIS < -80 dBm
Wi-Fi Protocol
802.11 b/g/n
Wi-Fi Range
Up to 30 m indoors and 50 m outdoors(Depends on local conditions)
Bluetooth Protocol
4.2
Bluetooth Range
Up to 10 m indoors and 30 m outdoors(Depends on local conditions)
Bluetooth Protocol
4.2
Antenna
Built-in or External (user-selectable by manual switch)
CPU
ESP32 series
Button Requirement
1 button (Reset + Wi-Fi function)
Data Update & Firmware
Communication Speed
Active power update rate: <50 ms via RS485, <100 ms via Wi-Fi
Data Logging
Consumption, fault logs (requires 16M flash in IoT module)
Calibration & Upgrade
Local upgrade via RS485 loop;
Remote OTA upgrade via Wi-Fi;
Parameter setting via ZH app with password
Lifetime & Reliability
Warranty
2 years
Design Lifetime
10 years
FFR During Warranty
0.05%
Supported Load Types
Resistive
Incandescent lamps, heating devices
Capacitive
LED drivers, capacitor banks, electronic devices, motor start capacitors
Inductive
Transformers, fans, refrigerators, air conditioners
Active Bi-directional Loads
1. After installing STREAM Series battery and compatible Smart Meter, users can connect appliances to wall outlets via compatible Smart Plugs, enabling remote on/off control and operation scheduling through the EcoFlow app—thereby minimizing solar energy waste.
